CS 180 Project 4: Image Warping and Mosaicing

Author

Jiawei Tang

Published

October 21, 2026

Part A: Image Warping and Mosaicing

A.1 Shooting the Pictures

Three pairs shot in Cupertino with the iPhone 17 Pro’s 1× camera. For each pair I kept the phone in place and only rotated it (about 17–19°), so the two photos share a center of projection and are related by a homography. The photos overlap by 63–69%.

Set 1: Visitor Center sign

Left: road and crosswalk
Left: road and crosswalk
Right (reference): sign and olive tree at the corner
Right (reference): sign and olive tree at the corner

Set 2: Olive tree path

Left: path through the olive trees
Left: path through the olive trees
Right (reference): olive trees and black louvered building
Right (reference): olive trees and black louvered building

Set 3: Apartment walkway

Left: left building and walkway
Left: left building and walkway
Right (reference): walkway and right building
Right (reference): walkway and right building

A.2 Recovering Homographies

A homography maps \((x, y)\) to \((x', y')\) up to scale:

\[ \begin{bmatrix} w x' \\ w y' \\ w \end{bmatrix} = \begin{bmatrix} a & b & c \\ d & e & f \\ g & h & 1 \end{bmatrix} \begin{bmatrix} x \\ y \\ 1 \end{bmatrix}. \]

Dividing out \(w\) and clearing the denominator gives two linear equations per correspondence:

\[ \begin{bmatrix} x & y & 1 & 0 & 0 & 0 & -x x' & -y x' \\ 0 & 0 & 0 & x & y & 1 & -x y' & -y y' \end{bmatrix} \mathbf h = \begin{bmatrix} x' \\ y' \end{bmatrix}, \qquad \mathbf h = (a, b, c, d, e, f, g, h)^\top. \]

Stacking \(n\) correspondences gives a \(2n \times 8\) system \(A\mathbf h = \mathbf b\), which I solve with least squares. I clicked 15 correspondences per pair, spread across the overlap.

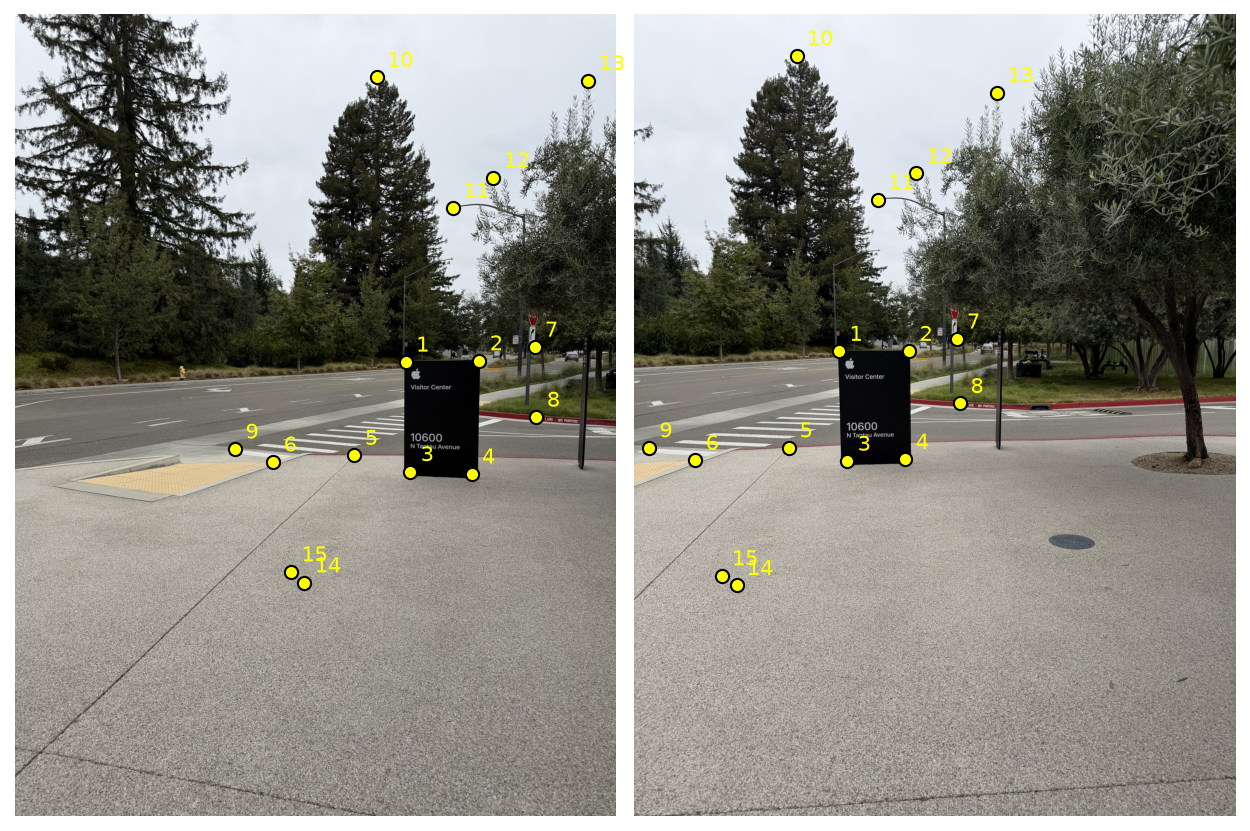

Set 1: numbered correspondences between the left photo and the reference
Set 1: numbered correspondences between the left photo and the reference

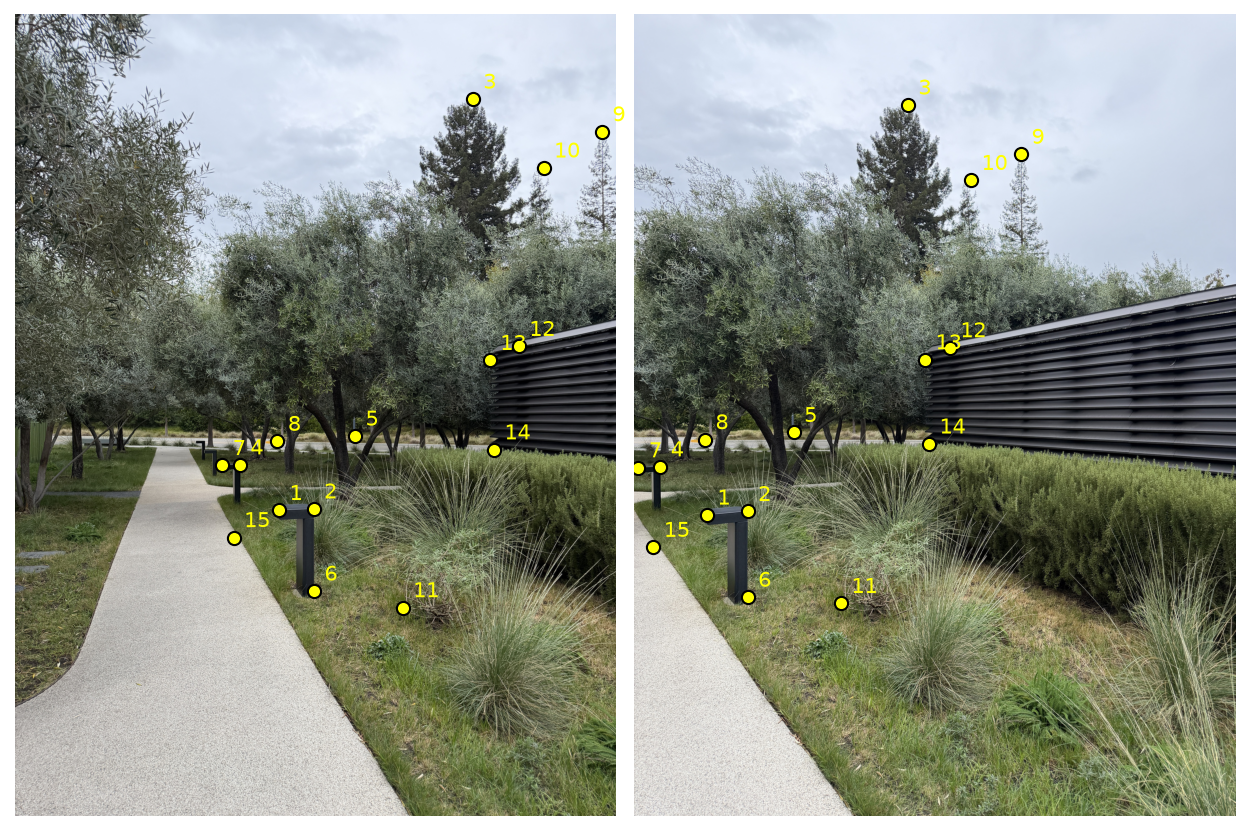

Set 2: numbered correspondences between the left photo and the reference
Set 2: numbered correspondences between the left photo and the reference

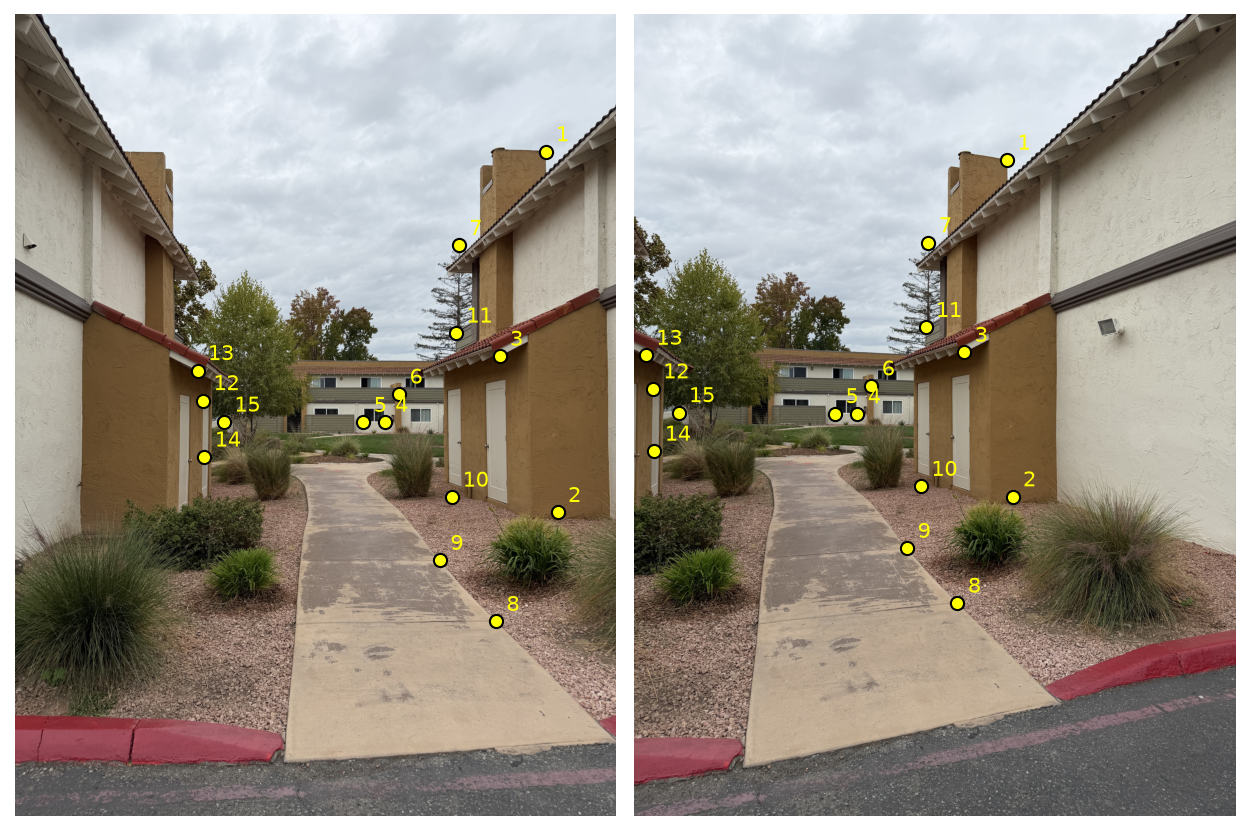

Set 3: numbered correspondences between the left photo and the reference
Set 3: numbered correspondences between the left photo and the reference

Full systems for Sets 1 and 2 (15 correspondences each, so \(30 \times 8\); rows \(2k-1\) and \(2k\) come from correspondence \(k\)).

Set 1:

\[ \small \begin{bmatrix} 779.17 & 693.52 & 1 & 0 & 0 & 0 & -317987.07 & -283032.45 \\ 0 & 0 & 0 & 779.17 & 693.52 & 1 & -523633.41 & -466073.18 \\ 926.29 & 690.92 & 1 & 0 & 0 & 0 & -507671.76 & -378672.52 \\ 0 & 0 & 0 & 926.29 & 690.92 & 1 & -622503.93 & -464325.88 \\ 788.28 & 912.25 & 1 & 0 & 0 & 0 & -334538.15 & -387149.78 \\ 0 & 0 & 0 & 788.28 & 912.25 & 1 & -702688.56 & -813197.90 \\ 910.67 & 916.81 & 1 & 0 & 0 & 0 & -491998.57 & -495315.77 \\ 0 & 0 & 0 & 910.67 & 916.81 & 1 & -808228.73 & -813678.04 \\ 676.97 & 879.70 & 1 & 0 & 0 & 0 & -208852.01 & -271396.25 \\ 0 & 0 & 0 & 676.97 & 879.70 & 1 & -585396.27 & -760702.98 \\ 514.87 & 892.72 & 1 & 0 & 0 & 0 & -62314.72 & -108045.90 \\ 0 & 0 & 0 & 514.87 & 892.72 & 1 & -457961.42 & -794047.66 \\ 1036.31 & 663.58 & 1 & 0 & 0 & 0 & -665787.72 & -426323.61 \\ 0 & 0 & 0 & 1036.31 & 663.58 & 1 & -670803.46 & -429535.33 \\ 1040.21 & 803.54 & 1 & 0 & 0 & 0 & -675751.62 & -522003.69 \\ 0 & 0 & 0 & 1040.21 & 803.54 & 1 & -807400.60 & -623699.71 \\ 438.71 & 867.33 & 1 & 0 & 0 & 0 & -12542.72 & -24796.96 \\ 0 & 0 & 0 & 438.71 & 867.33 & 1 & -379365.70 & -750006.27 \\ 721.88 & 125.22 & 1 & 0 & 0 & 0 & -233520.96 & -40507.42 \\ 0 & 0 & 0 & 721.88 & 125.22 & 1 & -59374.63 & -10299.34 \\ 873.56 & 386.26 & 1 & 0 & 0 & 0 & -424183.26 & -187560.13 \\ 0 & 0 & 0 & 873.56 & 386.26 & 1 & -322631.91 & -142657.41 \\ 954.28 & 325.72 & 1 & 0 & 0 & 0 & -536677.53 & -183181.67 \\ 0 & 0 & 0 & 954.28 & 325.72 & 1 & -302754.87 & -103337.93 \\ 1143.72 & 131.73 & 1 & 0 & 0 & 0 & -827870.28 & -95351.44 \\ 0 & 0 & 0 & 1143.72 & 131.73 & 1 & -178203.01 & -20524.85 \\ 577.17 & 1133.84 & 1 & 0 & 0 & 0 & -117575.30 & -230974.55 \\ 0 & 0 & 0 & 577.17 & 1133.84 & 1 & -657650.58 & -1291942.65 \\ 550.45 & 1112.23 & 1 & 0 & 0 & 0 & -95646.19 & -193261.08 \\ 0 & 0 & 0 & 550.45 & 1112.23 & 1 & -616454.46 & -1245597.50 \end{bmatrix} \mathbf h = \begin{bmatrix} 408.11 \\ 672.04 \\ 548.07 \\ 672.04 \\ 424.39 \\ 891.42 \\ 540.26 \\ 887.51 \\ 308.51 \\ 864.73 \\ 121.03 \\ 889.47 \\ 642.46 \\ 647.30 \\ 649.63 \\ 776.19 \\ 28.59 \\ 864.73 \\ 323.49 \\ 82.25 \\ 485.58 \\ 369.33 \\ 562.39 \\ 317.26 \\ 723.84 \\ 155.81 \\ 203.71 \\ 1139.44 \\ 173.76 \\ 1119.91 \end{bmatrix}. \]

Set 2:

\[ \small \begin{bmatrix} 526.59 & 989.72 & 1 & 0 & 0 & 0 & -76076.46 & -142984.85 \\ 0 & 0 & 0 & 526.59 & 989.72 & 1 & -525973.89 & -988562.03 \\ 595.59 & 986.46 & 1 & 0 & 0 & 0 & -134508.05 & -222782.13 \\ 0 & 0 & 0 & 595.59 & 986.46 & 1 & -590628.74 & -978242.79 \\ 913.27 & 168.83 & 1 & 0 & 0 & 0 & -498161.39 & -92091.70 \\ 0 & 0 & 0 & 913.27 & 168.83 & 1 & -164890.90 & -30482.26 \\ 448.47 & 898.58 & 1 & 0 & 0 & 0 & -23042.39 & -46169.04 \\ 0 & 0 & 0 & 448.47 & 898.58 & 1 & -404735.21 & -810950.48 \\ 678.27 & 841.29 & 1 & 0 & 0 & 0 & -215438.90 & -267218.94 \\ 0 & 0 & 0 & 678.27 & 841.29 & 1 & -565765.36 & -701745.23 \\ 596.25 & 1150.51 & 1 & 0 & 0 & 0 & -134657.10 & -259831.18 \\ 0 & 0 & 0 & 596.25 & 1150.51 & 1 & -693367.20 & -1337905.07 \\ 413.32 & 899.88 & 1 & 0 & 0 & 0 & -3207.36 & -6983.07 \\ 0 & 0 & 0 & 413.32 & 899.88 & 1 & -373823.14 & -813887.47 \\ 523.34 & 851.71 & 1 & 0 & 0 & 0 & -73560.67 & -119716.36 \\ 0 & 0 & 0 & 523.34 & 851.71 & 1 & -444027.82 & -722633.35 \\ 1171.06 & 233.93 & 1 & 0 & 0 & 0 & -903308.84 & -180444.24 \\ 0 & 0 & 0 & 1171.06 & 233.93 & 1 & -326550.08 & -65231.38 \\ 1054.53 & 306.19 & 1 & 0 & 0 & 0 & -708391.07 & -205686.19 \\ 0 & 0 & 0 & 1054.53 & 306.19 & 1 & -348975.61 & -101327.46 \\ 773.31 & 1183.71 & 1 & 0 & 0 & 0 & -318619.19 & -487712.19 \\ 0 & 0 & 0 & 773.31 & 1183.71 & 1 & -908824.84 & -1391143.34 \\ 1005.06 & 662.27 & 1 & 0 & 0 & 0 & -632624.97 & -416859.23 \\ 0 & 0 & 0 & 1005.06 & 662.27 & 1 & -668244.29 & -440330.08 \\ 947.12 & 690.27 & 1 & 0 & 0 & 0 & -549301.19 & -400335.89 \\ 0 & 0 & 0 & 947.12 & 690.27 & 1 & -652527.80 & -475568.42 \\ 955.59 & 868.63 & 1 & 0 & 0 & 0 & -561676.69 & -510563.34 \\ 0 & 0 & 0 & 955.59 & 868.63 & 1 & -818864.18 & -744346.42 \\ 436.10 & 1043.75 & 1 & 0 & 0 & 0 & -16445.33 & -39359.81 \\ 0 & 0 & 0 & 436.10 & 1043.75 & 1 & -463696.41 & -1109798.50 \end{bmatrix} \mathbf h = \begin{bmatrix} 144.47 \\ 998.83 \\ 225.84 \\ 991.67 \\ 545.47 \\ 180.55 \\ 51.38 \\ 902.48 \\ 317.63 \\ 834.13 \\ 225.84 \\ 1162.88 \\ 7.76 \\ 904.44 \\ 140.56 \\ 848.45 \\ 771.36 \\ 278.85 \\ 671.76 \\ 330.93 \\ 412.02 \\ 1175.24 \\ 629.44 \\ 664.88 \\ 579.97 \\ 688.96 \\ 587.78 \\ 856.92 \\ 37.71 \\ 1063.28 \end{bmatrix}. \]

Recovered homographies (left photo → right photo):

\[ H_1 = \begin{bmatrix} 1.5195 & 0.0606 & -683.89 \\ 0.2781 & 1.3733 & -267.93 \\ 4.060 \times 10^{-4} & 3.359 \times 10^{-5} & 1 \end{bmatrix}, \]

\[ H_2 = \begin{bmatrix} 1.4675 & 0.0114 & -607.27 \\ 0.2970 & 1.3179 & -251.65 \\ 3.770 \times 10^{-4} & 1.331 \times 10^{-5} & 1 \end{bmatrix}, \]

\[ H_3 = \begin{bmatrix} 1.4589 & 0.0014 & -504.99 \\ 0.2993 & 1.3310 & -271.69 \\ 3.682 \times 10^{-4} & 2.845 \times 10^{-5} & 1 \end{bmatrix}. \]

A.3 Warping the Images

Inverse warping: I send the image corners through \(H\) to get the output bounding box, then map every output pixel back through \(H^{-1}\) and sample the source. Pixels that map outside the source get alpha 0.

  • Nearest neighbor: round to the closest pixel.
  • Bilinear: take a weighted average of the 4 surrounding pixels, weighted by how close each one is.

Rectification

I click the four corners of a rectangular object and map them to a rectangle with its aspect ratio: 22 × 28 in for the poster frame, 8.5 × 11 in for the flyer, and about 1.6 : 1 (estimated) for the menu board.

Rectification 1: poster frame

Original
Original
Rectified · nearest neighbor
Rectified · nearest neighbor
Rectified · bilinear
Rectified · bilinear

Rectification 2: flyer

Original
Original
Rectified · nearest neighbor
Rectified · nearest neighbor
Rectified · bilinear
Rectified · bilinear

Rectification 3: menu board

Original
Original
Rectified · nearest neighbor
Rectified · nearest neighbor
Rectified · bilinear
Rectified · bilinear

Nearest Neighbor vs. Bilinear

Image Output size Nearest neighbor Bilinear
Poster frame 1543 × 2084 0.24 s 0.46 s
Flyer 2580 × 3386 0.72 s 1.26 s
Menu board 1856 × 2284 0.35 s 0.78 s

Bilinear is about 2× slower, since it reads four pixels instead of one. Zoomed in, nearest neighbor gives jagged, blocky letter edges where the photo is enlarged, while bilinear stays smooth and only slightly softer. The quality is worth the cost, so I use bilinear for the mosaics.

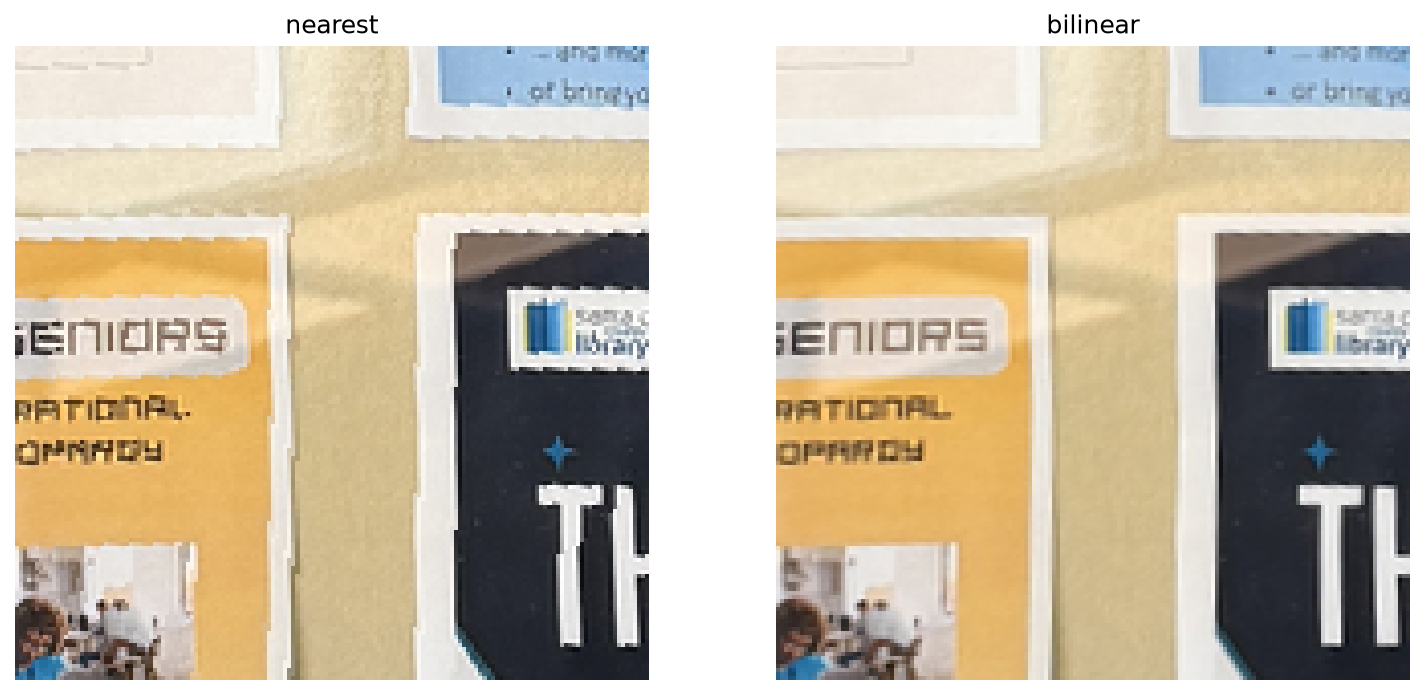

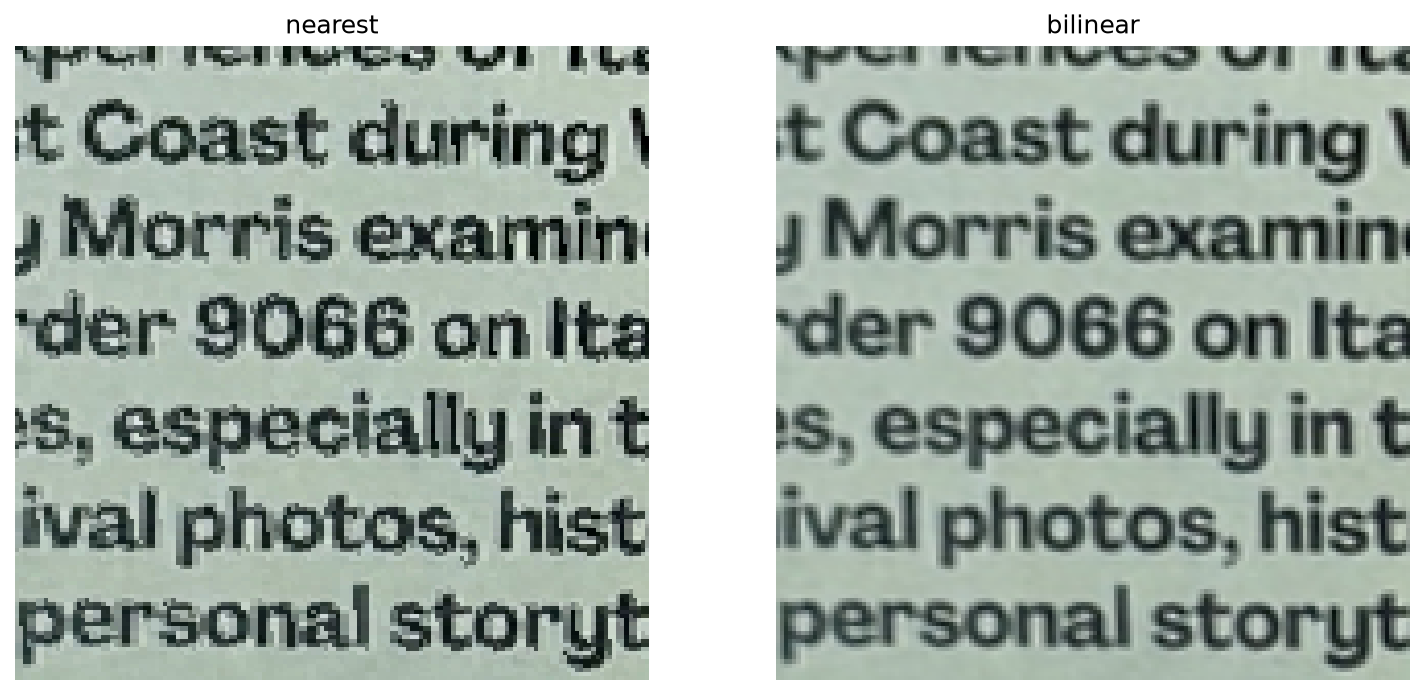

Rectification 1: poster frame: nearest neighbor (left) vs. bilinear (right), zoomed
Rectification 1: poster frame: nearest neighbor (left) vs. bilinear (right), zoomed
Rectification 2: flyer: nearest neighbor (left) vs. bilinear (right), zoomed
Rectification 2: flyer: nearest neighbor (left) vs. bilinear (right), zoomed

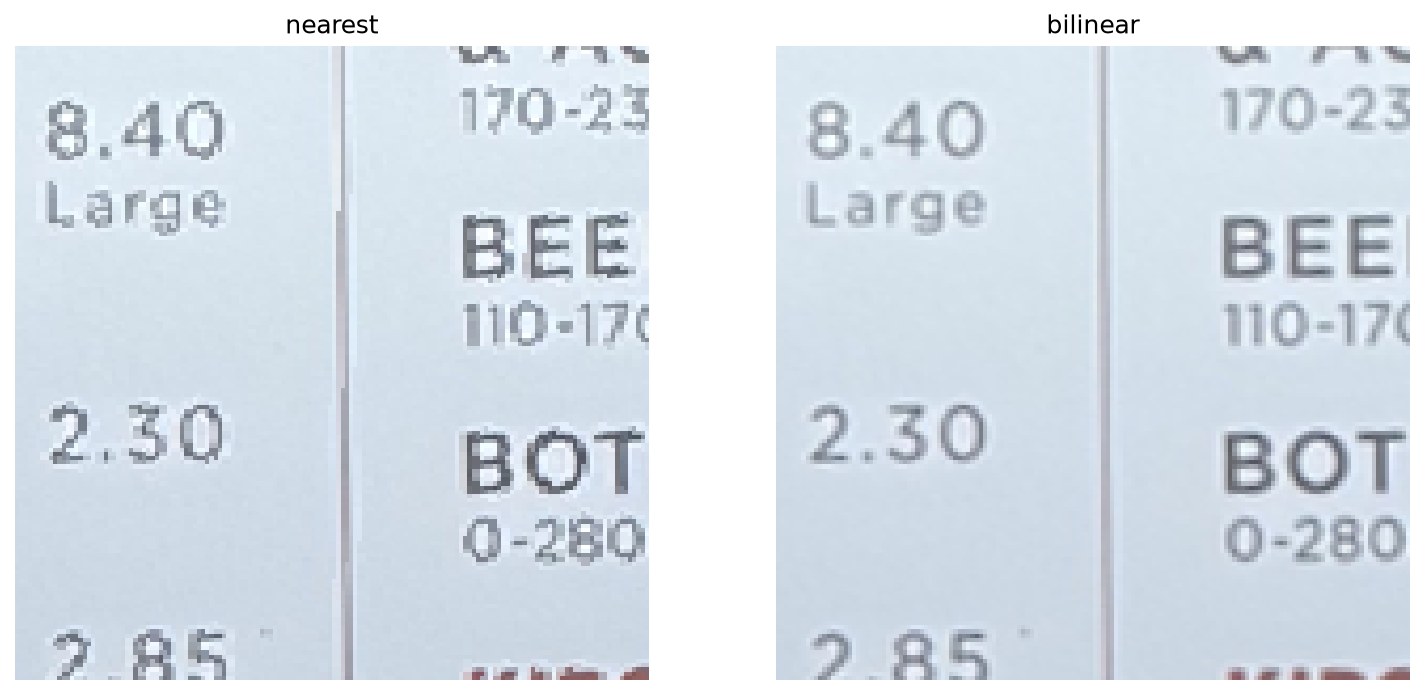

Rectification 3: menu board: nearest neighbor (left) vs. bilinear (right), zoomed
Rectification 3: menu board: nearest neighbor (left) vs. bilinear (right), zoomed

A.4 Blending into a Mosaic

  1. Keep the right photo fixed and warp the left photo into its frame, on a canvas that fits both.
  2. Give each image a weight that is 1 at its center and falls toward 0 at its edges (a distance transform), warped along with the image.
  3. Blend in two bands so that small misalignments don’t show up as doubled edges:
    • Low band (Gaussian blur, \(\sigma = 8\)): weighted average, so brightness changes fade across the overlap.
    • High band (image minus blur): taken from whichever image has the larger weight at each pixel.
  4. Add the two bands to get the mosaic.

Set 1: Visitor Center sign

Left: road and crosswalk
Left: road and crosswalk
Right (reference): sign and olive tree at the corner
Right (reference): sign and olive tree at the corner

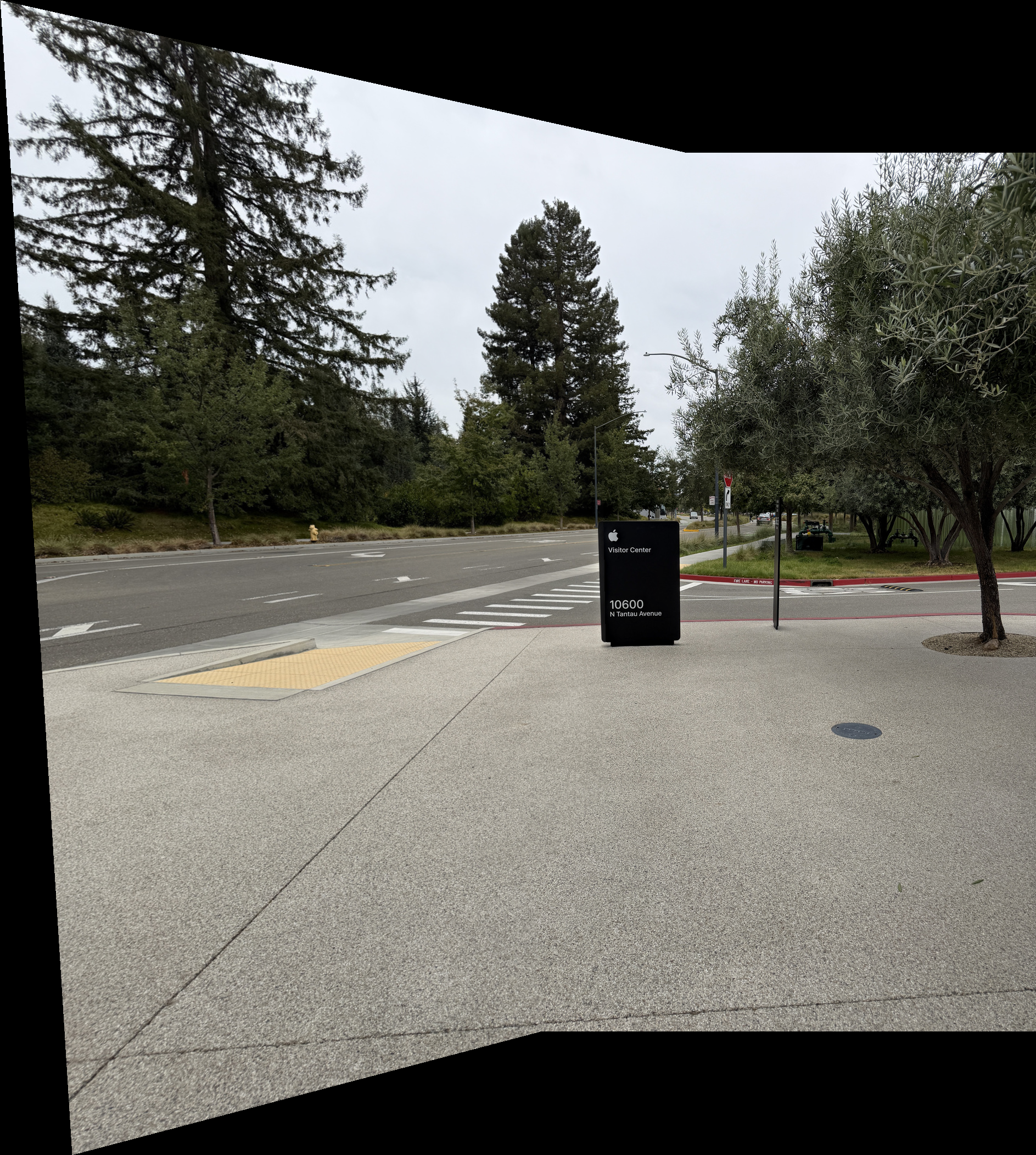

Set 1 mosaic
Set 1 mosaic

Set 2: Olive tree path

Left: path through the olive trees
Left: path through the olive trees
Right (reference): olive trees and black louvered building
Right (reference): olive trees and black louvered building

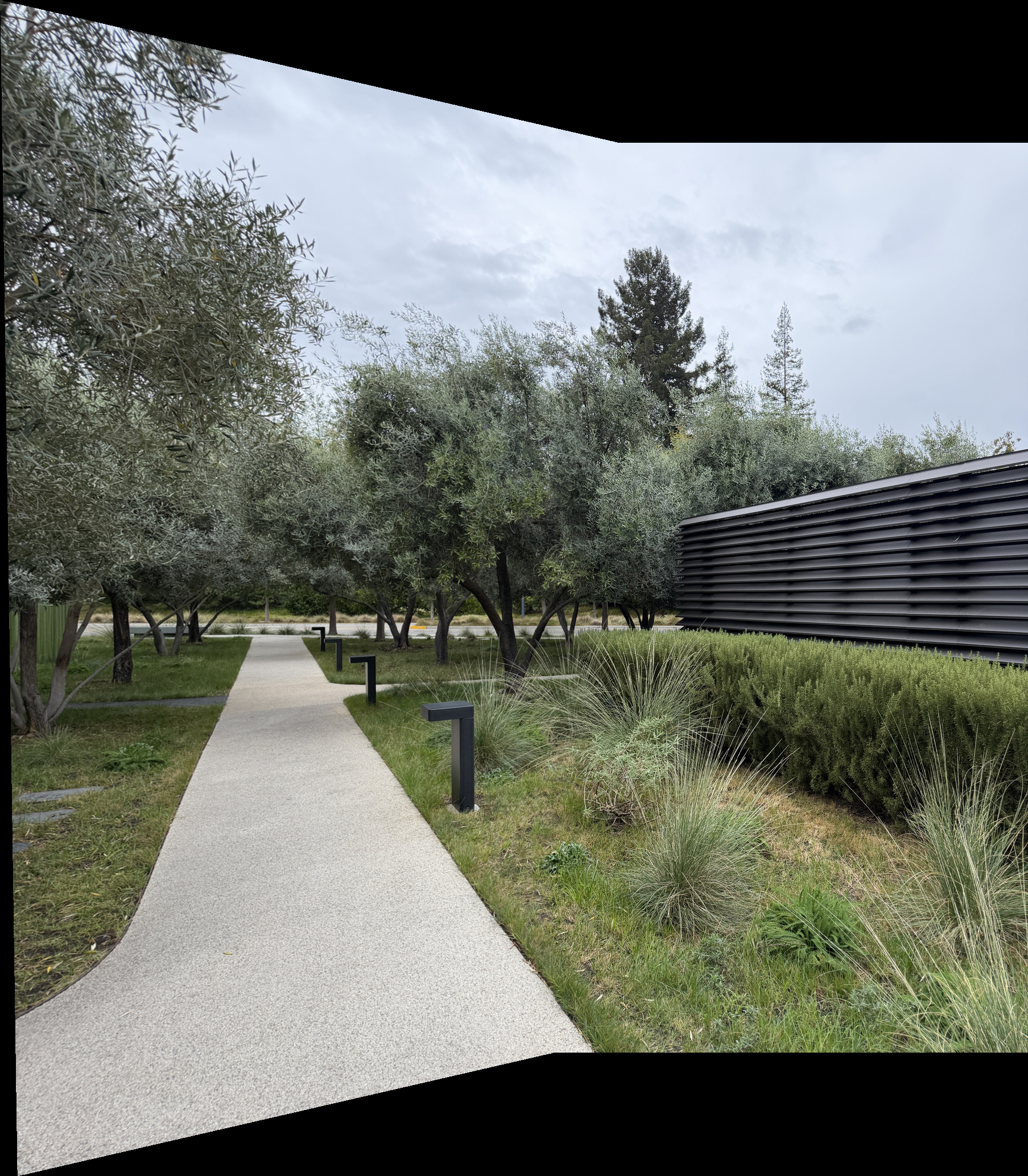

Set 2 mosaic
Set 2 mosaic

Set 3: Apartment walkway

Left: left building and walkway
Left: left building and walkway
Right (reference): walkway and right building
Right (reference): walkway and right building
Set 3 mosaic
Set 3 mosaic

Part B: Feature Matching for Autostitching

Clicking correspondences by hand in Part A was slow and never exact. Part B finds them automatically, following the MOPS paper by Brown et al. at a single scale.

B.1 Harris Corner Detection

The course’s harris.py finds over 40,000 corners in this photo (left), far too many to match. Keeping only the 500 strongest (middle) piles them into the trees. ANMS instead keeps a corner only if no much stronger corner is nearby, so its 500 corners (right) cover the whole photo.

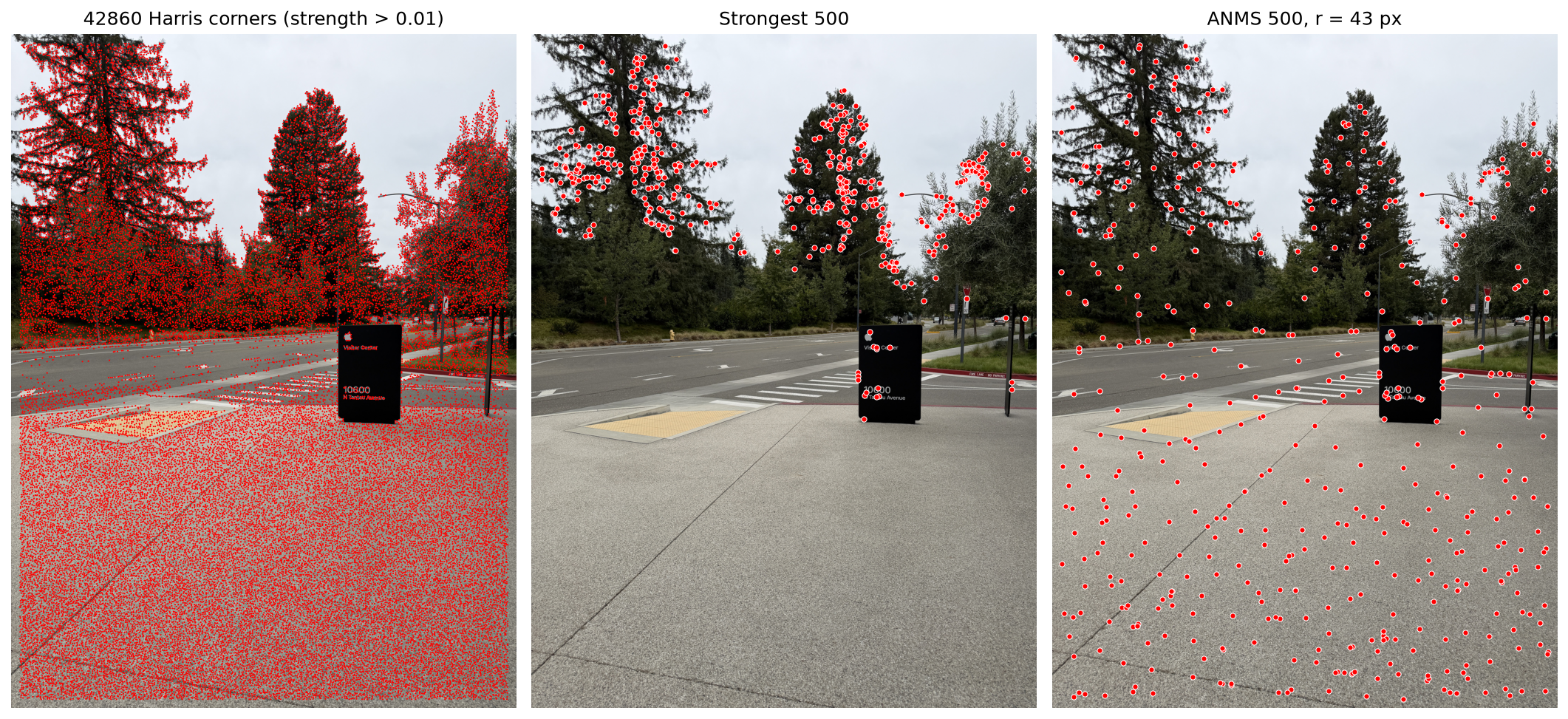

Set 1, left photo: Harris corners above 0.01, the 500 strongest, and the 500 chosen by ANMS
Set 1, left photo: Harris corners above 0.01, the 500 strongest, and the 500 chosen by ANMS

B.2 Feature Descriptor Extraction

Around each ANMS corner I blur a 40×40 window, sample it every 5 px into an 8×8 patch, and normalize the patch to mean 0 and standard deviation 1. Here are a few from Set 1:

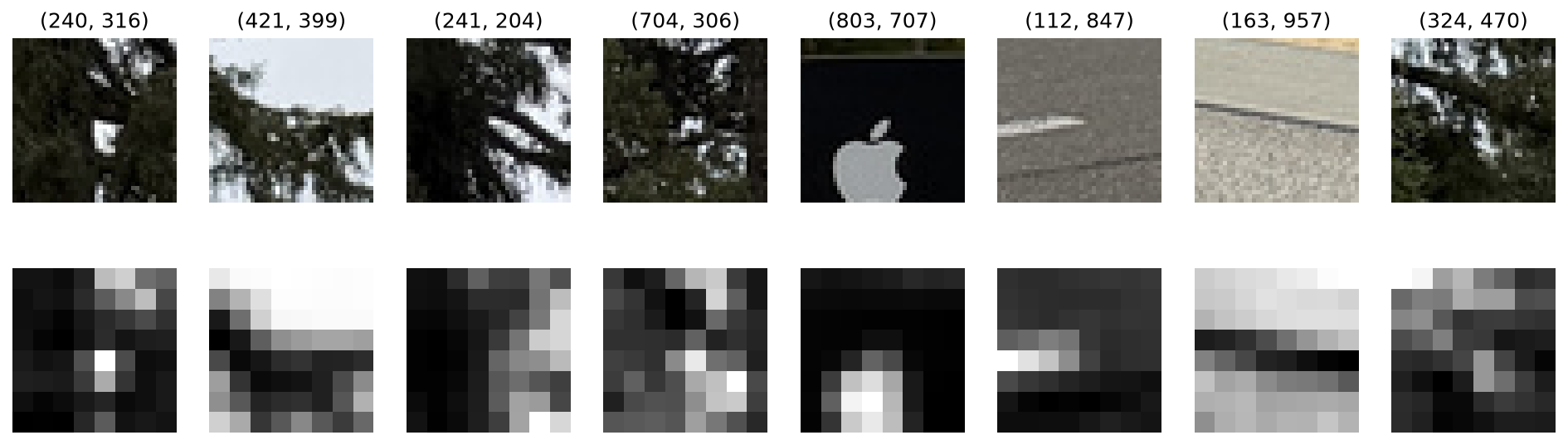

Set 1: 40×40 windows around eight ANMS corners (top) and their normalized 8×8 descriptors (bottom)
Set 1: 40×40 windows around eight ANMS corners (top) and their normalized 8×8 descriptors (bottom)

Each descriptor is a coarse copy of its window, so it still matches if the corner is off by a pixel or two, and the normalization makes it ignore brightness and contrast changes.

B.3 Feature Matching

Each feature is matched to its nearest neighbor in the other photo. I keep the match only if it is much closer than the second-nearest neighbor (ratio threshold 0.5, from Figure 6b). The lines connect the matched features:

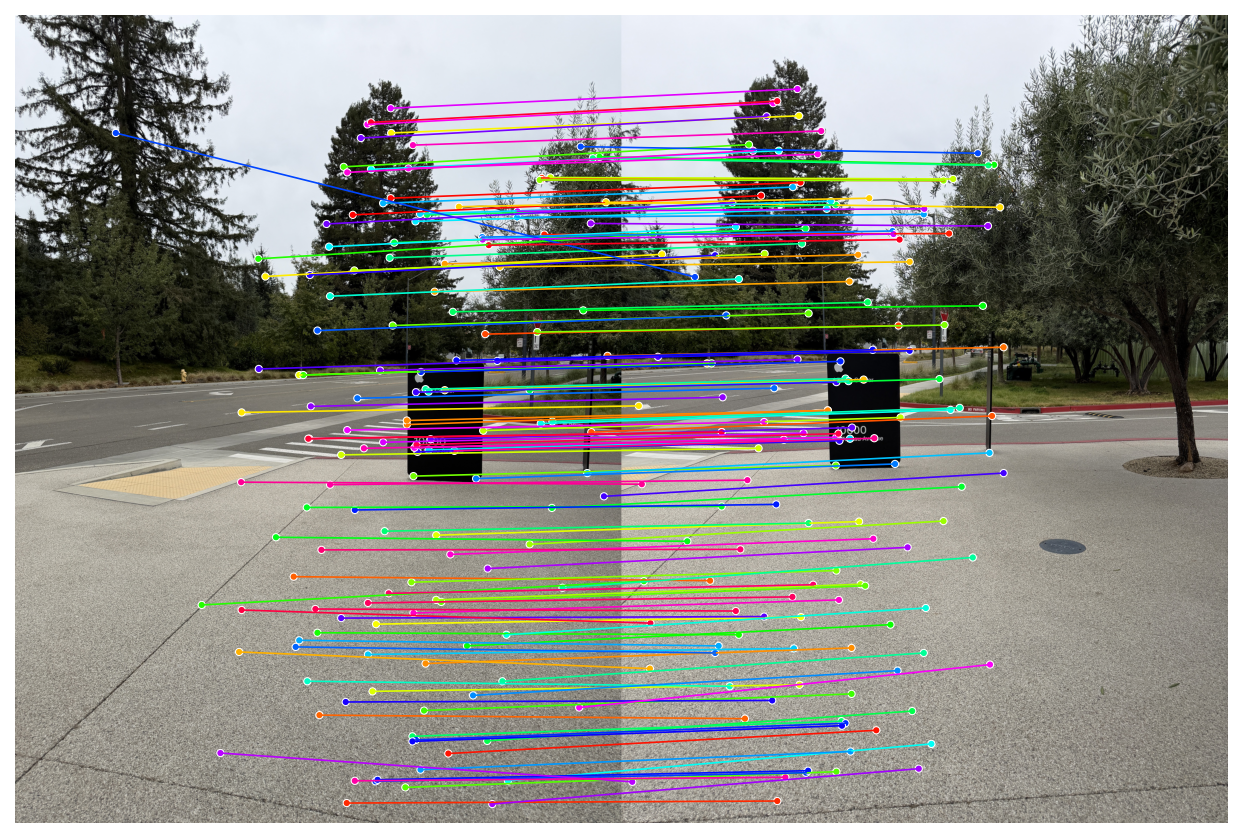

Set 1: matches that pass the ratio test, left photo to reference
Set 1: matches that pass the ratio test, left photo to reference

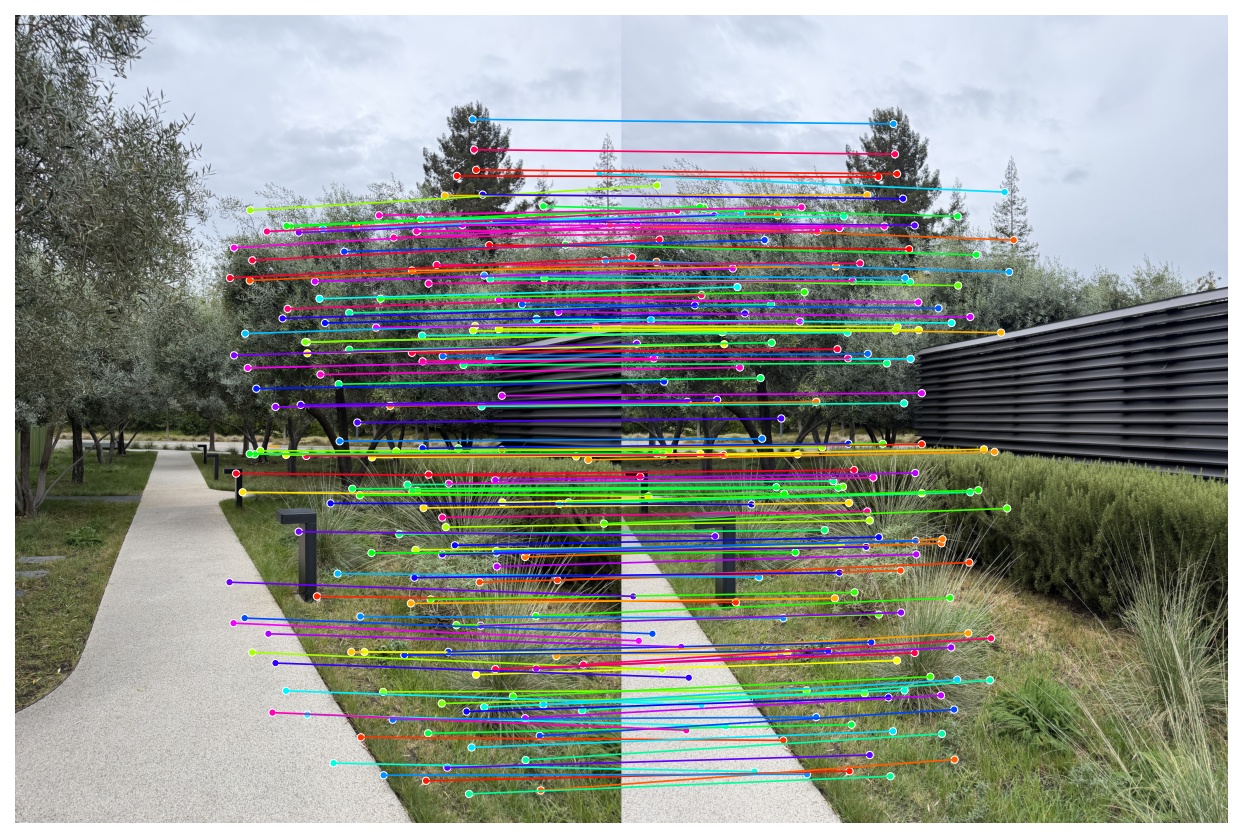

Set 2: matches that pass the ratio test, left photo to reference
Set 2: matches that pass the ratio test, left photo to reference

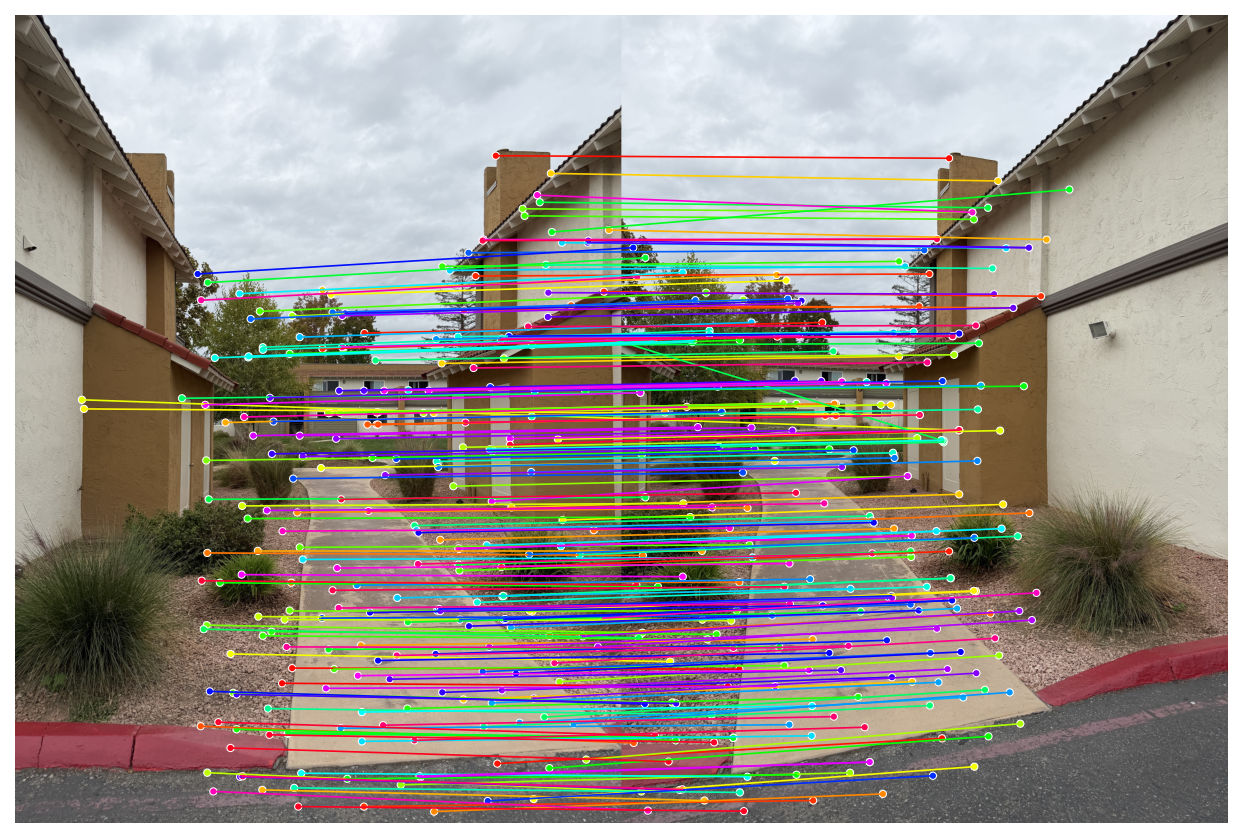

Set 3: matches that pass the ratio test, left photo to reference
Set 3: matches that pass the ratio test, left photo to reference

Most lines run parallel, so most matches are right, but a few cross and are clearly wrong.

B.4 RANSAC for Robust Homography

To throw out the wrong matches, RANSAC repeatedly fits a homography to 4 random matches and keeps the one that the most matches agree with (within 3 px). The final homography is fit to all of those matches. Here are the manual mosaics from Part A next to the automatic ones:

Set 1

Set 1 · manual (Part A)
Set 1 · manual (Part A)
Set 1 · automatic (RANSAC)
Set 1 · automatic (RANSAC)

Set 2

Set 2 · manual (Part A)
Set 2 · manual (Part A)
Set 2 · automatic (RANSAC)
Set 2 · automatic (RANSAC)

Set 3

Set 3 · manual (Part A)
Set 3 · manual (Part A)
Set 3 · automatic (RANSAC)
Set 3 · automatic (RANSAC)

The automatic mosaics line up as well as the manual ones, with no clicking.
